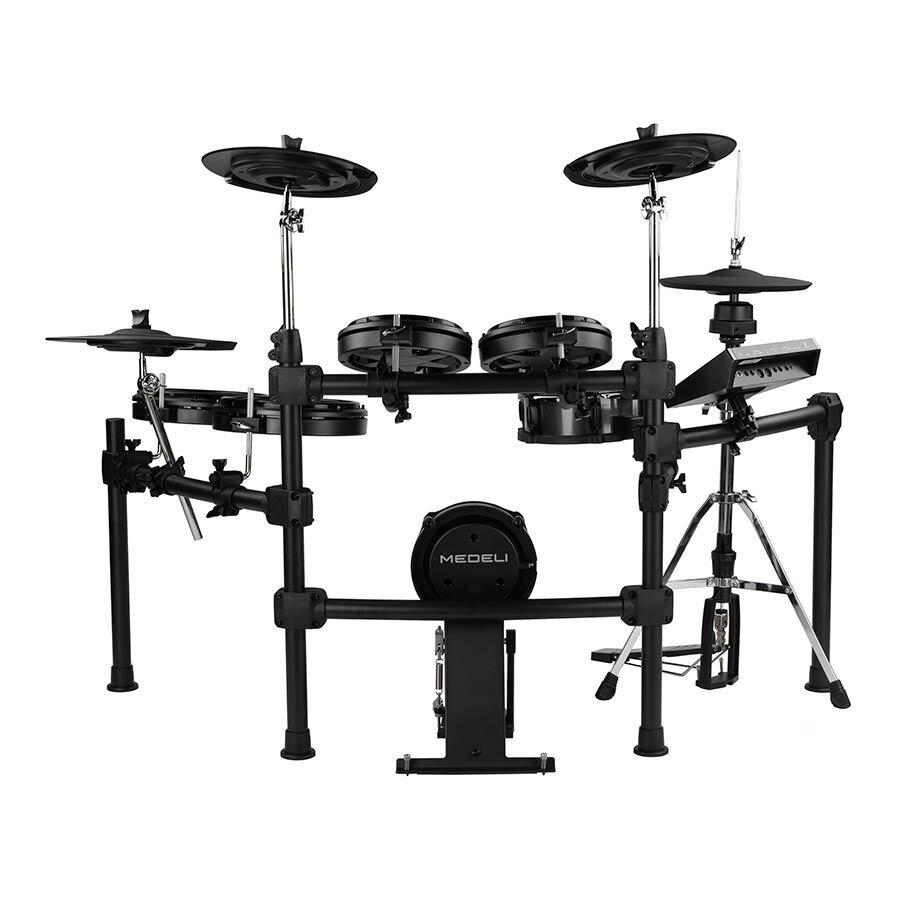

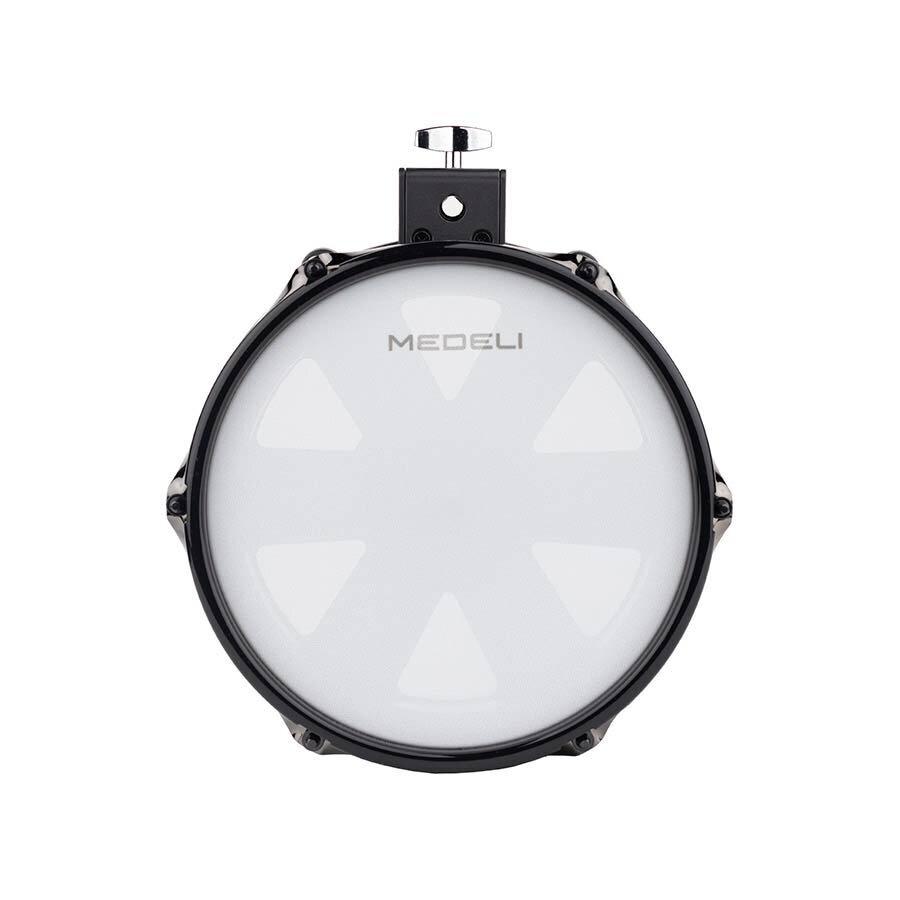

Drum Pads
Kick: 8" mesh head
Snare: 10" mesh head (2-zone)
Toms: 2 × 8" mesh head (2-zone), 2 × 10" mesh head (2-zone)
Hi-Hat: 12" (2-zone) + real hi-hat pedal
Crash Cymbals: 2 × 12" (2-zone, with choke)
Ride Cymbal: 14" (3-zone, with choke)

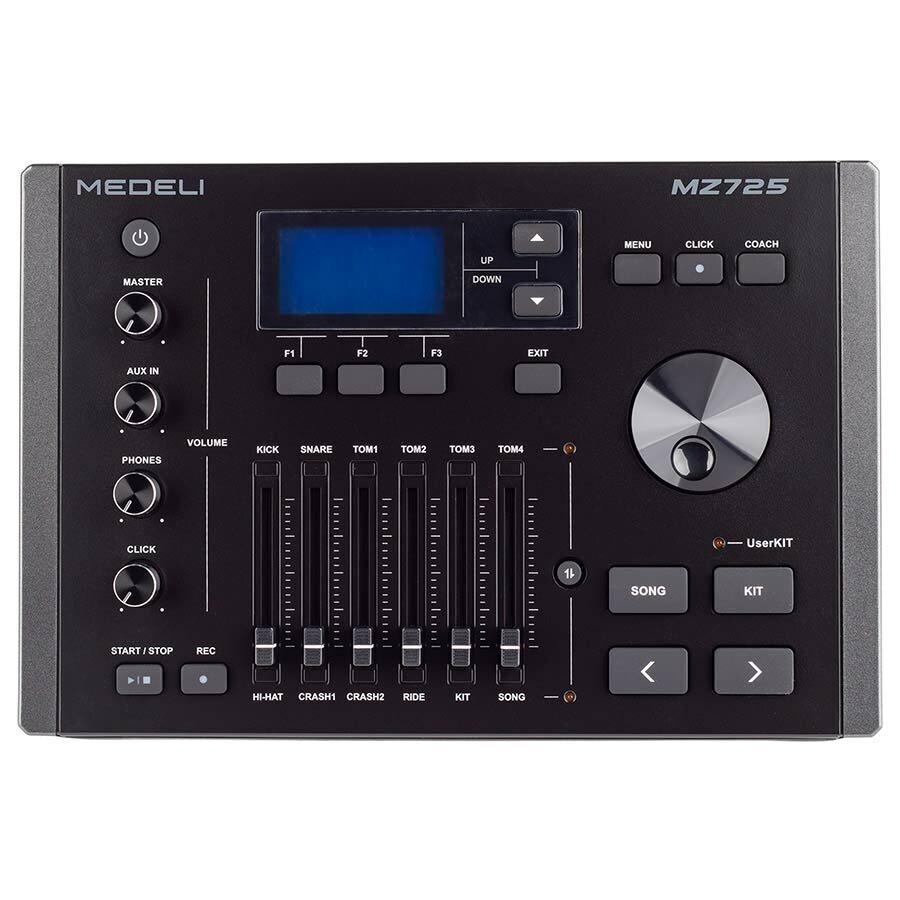

Module & Sound Engine
Display: 3" LCD (128 × 64)
Max Polyphony: 128
Drum Kits: 54 preset + 45 user
Sounds/Voices: 699 + 19 hi-hat variations + user samples (15 MB max)
Songs: 100 preset + 10 user
Effects: Global compressor, reverb per kit, EQ per kit
Recording: MIDI & Audio
Audio Playback: WAV, MP3
Coach Functions: Quiet count, beat check, change up
Metronome: Click voice, volume, time signature, interval select
Tempo Range: 30–280 BPM
Volume Controls: 6 sliders + 4 knobs
External Memory: SD card (up to 64GB)
Trigger Parameters
Gain, threshold, H/R response, cross-stick level
Curve, crosstalk, retrigger level
Splash gain, hi-hat close point
Connectivity
USB-B (MIDI)
MIDI In/Out
Headphone: 1 × 1/4"
Aux-In: 1 × 1/8"
Outputs: 2 × 1/4" mono
Power: DC 9V
Dimensions & Weight
Size: 1300 × 573 × 1200 mm
Weight: 41 kg
